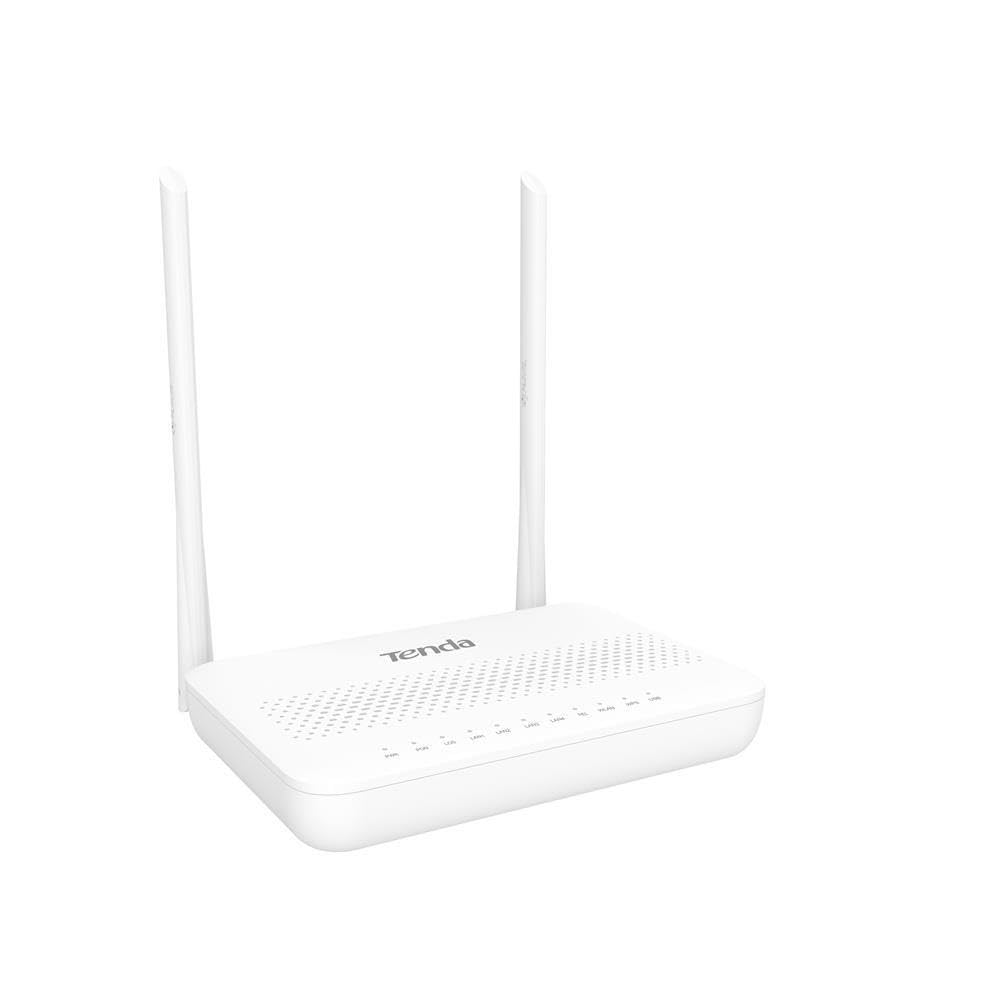

Tenda HG10 AC1200 Dualband Wi-Fi XPON ONT

Original price was: ₹4,350.00.Current price is: ₹4,100.00.

About this item

Dualband AC1200 Wi-Fi xPON ONT supporting both GPON & EPON standards.
Interfaces: 1× SC/APC or SC/UPC port, 4× Gigabit LAN, 1× TEL, 1× DC power.
Wireless: Dual-band (2.4GHz up to 300 Mbps, 5GHz up to 867 Mbps), MU-MIMO, EasyMesh, WPS.
Antenna: 4 × 5dBi high-gain antennas for extended coverage.
Supports PPPoE, Static/Dynamic IP, Multiple WAN, IPTV, VoIP, TR-069 remote management.
Advanced QoS, Firewall, VPN pass-through, IGMP Proxy, Dynamic DNS, DDOS protection.
VoIP features: SIP, Codec, Speed dial, Dial plan, DND, Hotline.
Security: WPA/WPA2, WPA-PSK, WEP, MAC filtering, URL filtering.
Optical: 20km transmission, Class B+, TX 0.5~~5dBm, RX -28~~-8dBm.
Power: DC 12V/1.0A, ≤12W consumption.
Dimensions: 220.8×141.9×31mm, lightweight and compact.
Environment: Works in 0°C–45°C, 10–95% humidity, CE/RoHS certified.
Package includes HG10 unit, power adapter, RJ45 cable, RJ11 cable, user manual.

Add to compare

Add to wishlist

Category: XPON -ONT Brand: Tenda

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

10 People watching this product now!

Pick up from the Woodmart Store

To pick up today

Free

Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

Warranty 1 year

More details

Free 30-Day returns

More details

Payment Methods:

Description

Technical Details

Category	Specification
Standards	IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
PON	GPON: ITU G.984.1–4, EPON: IEEE 802.3ah
Interfaces	1× SC/APC or SC/UPC port, 4× Gigabit RJ45 LAN, 1× TEL, 1× DC power

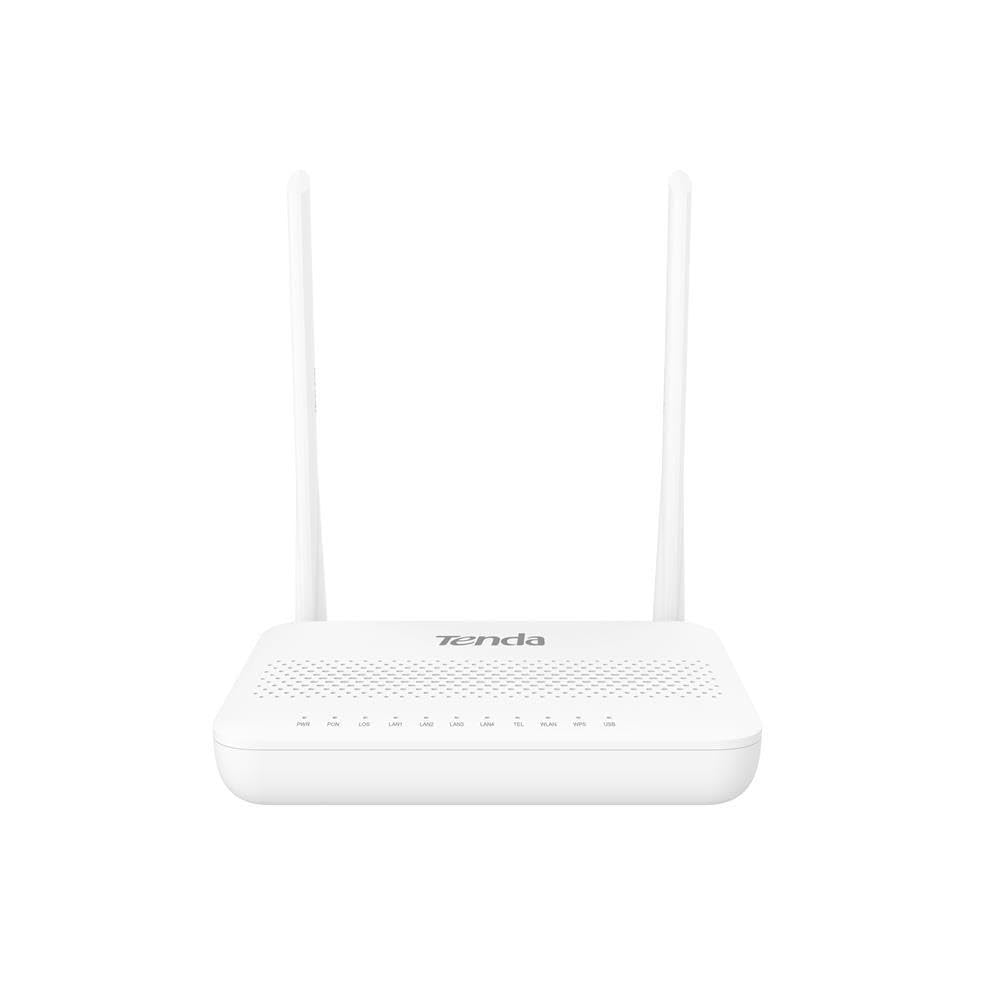

Indicators	PWR, PON, LOS, LAN, WLAN, TEL
Buttons	1× WPS/Reset
Optical Specs	Class B+, TX: 0.5–5 dBm, RX: -28 ~ -8 dBm, Distance: 20 km max
Wavelength	TX: 1310nm, RX: 1490nm
Bandwidth	GPON: Up 1.244 Gbps / Down 2.488 Gbps, EPON: Up/Down 1.244 Gbps
Dimensions	220.8 × 141.9 × 31 mm
Power	DC 12V/1.0A, Consumption ≤12W
Networking	DHCP Server/Client, DHCP Relay, PPPoE, Dynamic/Static IP, Bridge, Multi-WAN
Services	Internet, IPTV, VoIP, TR-069, IGMP Proxy, EasyMesh, MU-MIMO
QoS	Bandwidth Control
IP Version	IPv4, IPv6
VPN	PPTP, L2TP, IPsec passthrough
Firewall	ALG, IP/Port/MAC/URL filter, Port forwarding, DMZ, DDOS protection
IPv6	Radvd, DHCPv6, MLD Proxy, MLD Snooping
Diagnostics	Ping, Ping6, Tracert, Tracert6
VoIP	SIP (Proxy, Advanced, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm)
Wireless	Dualband 2.4GHz (300 Mbps) + 5GHz (867 Mbps), MU-MIMO, WMM, WDS Bridge
Antennas	4 × 5 dBi external
Channels	2.4GHz: CH1–13, 5GHz: CH36–48, CH149–165
Bandwidth	2.4G: 20/40 MHz, 5G: 20/40/80 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, MAC filtering
SSIDs	Main SSID (2.4 & 5GHz) + 4 Guest SSIDs (2.4 & 5GHz)
Max Terminals	32 per band
Environment	Operating: 0–45°C, Storage: -40–70°C, Humidity: 10–95% RH
Package Contents	1× HG10, 1× Power adapter, 1× User manual, 1× RJ45 cable, 1× RJ11 cable
Certifications	CE, RoHS, Anatel
